Fastening the bolt pulley.

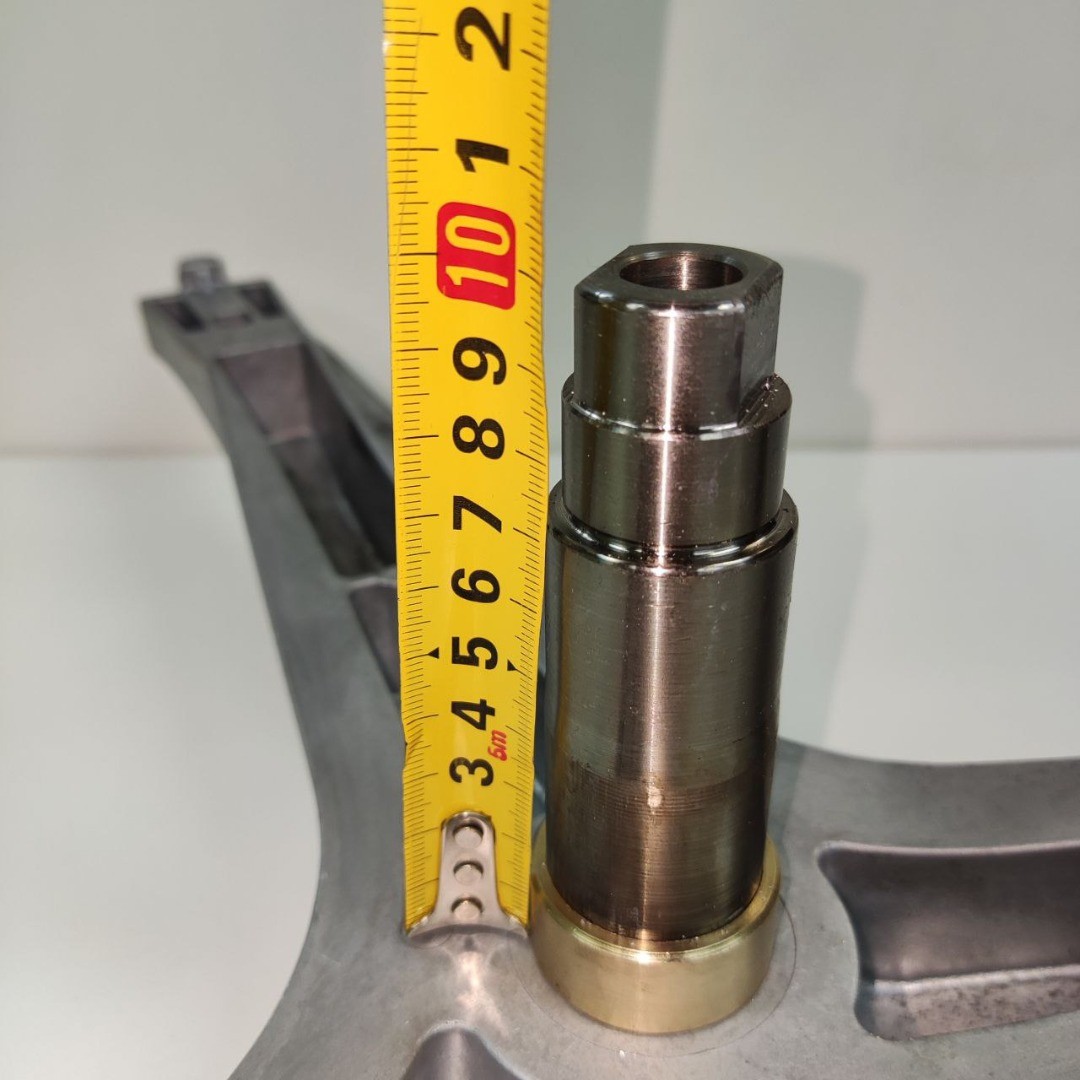

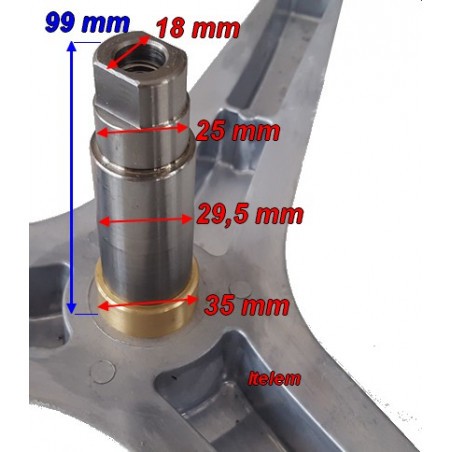

Shaft length 98 mm
Bush diameter 35 mm
Inner bearing diameter 30 mm (6206)
The outer diameter of the bearing is 25 mm (6205).
The height of the sleeve under the sealing box is 15 mm
Height from hub to outer bearing socket 55.5 mm
Outer bearing seat height 14.5 mm
Pulley landing height 13 mm
Dimensions of the pulley landing:
Diameter 23 mm
Groove 18 mm
